Description
The spirit of Dik Geurts

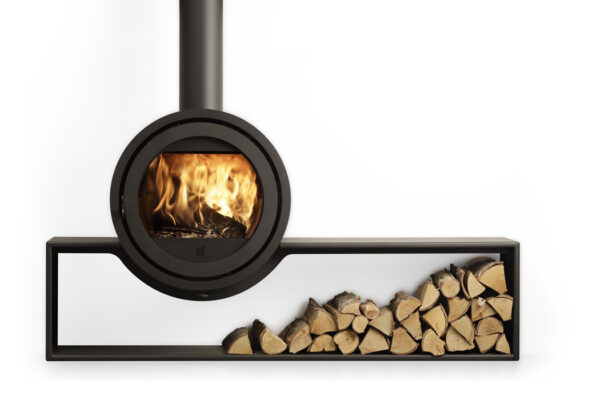

The special characteristics of Dik Geurts can be found in many elements of the Odin: its dark anthracite exterior, the seamless finish, the sturdy door hinge, its perfect air-tightness and the simplicity of the single air slider. This beautiful wood stove from the Odin series comes with a plateau, on which you can place the stove to the left or right hand sides. With the Odin and the Odin Tunnel, Dik Geurts is adding two superior models to its impressive range of wood stoves.
Specifications
| Brand | Dik Geurts |
|---|---|
| Series | Odin |
| Category | Wood stoves |
| EcoDesign Ready | Yes |
| Energy efficiency class | A |
| Product fiche | Click for PDF-file |
| Model | Freestanding |
| Fire view | Tunnel |
| Shape | Round |
| Fuel | Wood |
| Combustion system | Combustion air from living area |
| Suitable for passive houses | No |
| Glass window | Standard glass |
| Door type | Hinged door |
More Specifications
| Control | Manual control |
|---|---|
| S-Thermatik NEO | No |
| Colours | Dark anthracite |
| Material | Steel |
| Interior | Vermiculite dark anthracite |
| Output net min. (kW) | 6.0 |
| Output net max. (kW) | 10.0 |
| Nominal heat output | 8.3 |
| Max. log length (cm) | 33 |
| Efficiency (%) | 75.0 |
| CO emission (%-13% O2) | 0.07 |
| Particulate Matter (mg/Nm3-13% O2) | 40 |
| OGC/CxHy (mg/Nm3-13% O2) | 77 |
| NOx emission (mg/Nm3-13% O2) | 127 |
| Built-in depth (mm) | 400 |
| Fire view width (mm) | 424 |
| Fire view height (mm) | 424 |
| Weight (kg) | 130 |
| Flue | Top |
| Flue Ø (mm) | 150 |
| External air connection | Base |
| Convection connection | No |
| 230V necessary | No |
| Approvals | EN13240, Flamme Verte, BlmSchV, EcoDesign |
| Declaration of performance | Click for PDF-file |
| Dimensions | Click for PDF-file |
| Product manual | Click for PDF-file |
Additional information
| Flue outlet | 150mm |
|---|---|
| Fuel | Wood |
| Material | Steel |
| Output | 6 – 10kw |
