Description
High capacity with log storage

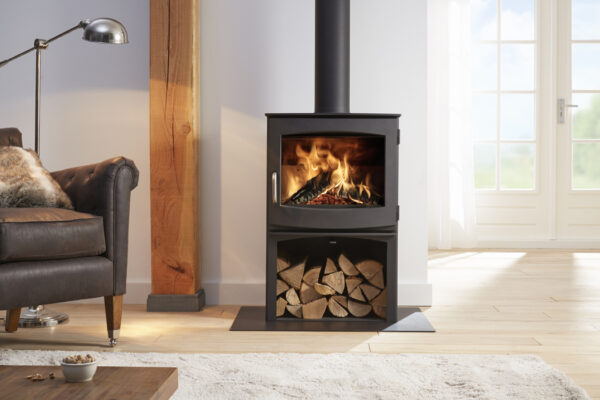

Ivar 8, Store is a versatile stove that can burn wood, and when the Mulfti-Fuel kit is added, coke or coal. It has a classic wood stove design, with a large viewing window and a convenient log storage space. With a heat output of up to 10 kW, it can easily heat a spacious room, but its low emissions qualify it for DEFRA approval in smokeless zones.
Specifications
| Brand | Dik Geurts |
|---|---|
| Series | Ivar |
| Category | Wood stoves |
| EcoDesign Ready | Yes |
| Energy efficiency class | A |
| Product fiche | Click for PDF-file |
| Model | Freestanding |
| Fire view | Front |
| Shape | Horizontal |
| Fuel | Wood, Multi-fuel |
| Combustion system | Combustion air from outside, Combustion air from living area |
| Suitable for passive houses | Yes |
| Glass window | Standard glass |
| Door type | Hinged door |
More Specifications
| Control | Manual control |
|---|---|
| S-Thermatik NEO | No |
| Colours | Dark anthracite |
| Material | Steel |
| Interior | Vermiculite natural |
| Output net min. (kW) | 5.0 |
| Output net max. (kW) | 10.0 |
| Nominal heat output | 7.3 |
| Max. log length (cm) | 46 |
| Efficiency (%) | 76.6 |
| CO emission (%-13% O2) | 0.04 |
| Particulate Matter (mg/Nm3-13% O2) | 34 |
| OGC/CxHy (mg/Nm3-13% O2) | 27 |
| NOx emission (mg/Nm3-13% O2) | 153 |
| Built-in depth (mm) | 350 |
| Fire view width (mm) | 418 |
| Fire view height (mm) | 310 |
| Weight (kg) | 120 |
| Flue | Top, Rear |
| Flue Ø (mm) | 150 |
| External air connection | Rear, Base |
| Convection connection | No |
| 230V necessary | No |
| Approvals | EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign, Clearskies, Hetas |
| Declaration of performance | Click for PDF-file |
| Dimensions | Click for PDF-file |
| Product manual | Click for PDF-file |
Additional information
| Flue outlet | 150mm |
|---|---|
| Fuel | Wood |
| Material | Steel |
| Output | 6 – 10kw |
