Description
Beautiful design with handy wood compartments

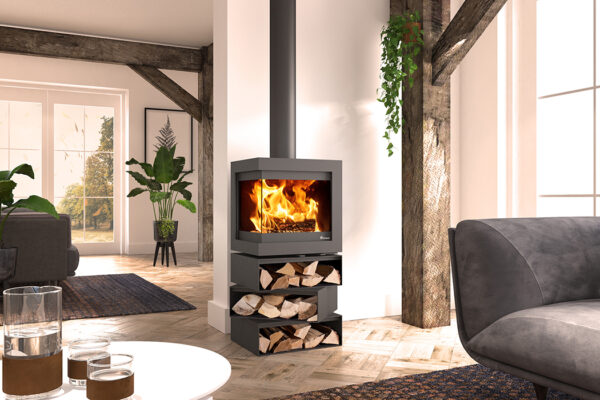

The Bora Corner, Cubes stands on three cubes that can be used to store wood. Turn the cubes on installation to the position that suits your setup best. This will make the wood stove a real eyecatcher in your home.
Specifications
| Brand | Dik Geurts |
|---|---|
| Series | Bora |
| Category | Wood stoves |
| EcoDesign Ready | Yes |
| Energy efficiency class | A |
| Product fiche | Click for PDF-file |
| Model | Freestanding |
| Fire view | 2-sided |
| Shape | Horizontal |
| Fuel | Wood |
| Combustion system | Combustion air from outside, Combustion air from living area |
| Suitable for passive houses | Yes |
| Glass window | Standard glass, Infrared glass |
| Door type | Hinged door |
More Specifications
| Control | Manual control |
|---|---|
| Colours | Dark anthracite |
| Material | Steel |
| Interior | Vermiculite dark anthracite |
| Output net min. (kW) | 4.0 |
| Output net max. (kW) | 9.0 |
| Nominal heat output | 6.7 |
| Max. log length (cm) | 36 |
| Efficiency (%) | 78.1 |
| CO emission (%-13% O2) | 0.09 |
| Particulate Matter (mg/Nm3-13% O2) | 18 |
| OGC/CxHy (mg/Nm3-13% O2) | 64 |
| NOx emission (mg/Nm3-13% O2) | 98 |
| Built-in depth (mm) | 577 |
| Fire view width (mm) | 440 |
| Fire view height (mm) | 380 |
| Weight (kg) | 110 |
| Flue | Top |
| Flue Ø (mm) | 150 |
| External air connection | Base |
| Convection connection | No |
| 230V necessary | No |
| Approvals | EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign |
| Declaration of performance | Click for PDF-file |
| Dimensions | Click for PDF-file |
| Product manual | Click for PDF-file |
Additional information
| Flue outlet | 150mm |
|---|---|
| Fuel | Wood |
| Material | Steel |
| Output | 6 – 10kw |
